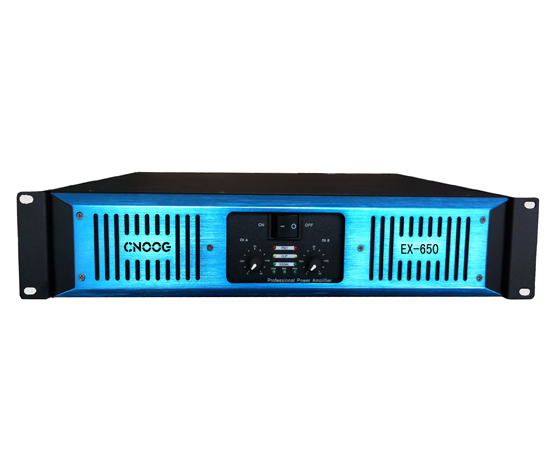

| EX-650 |
 |
|
MODEL
|
EX-650
|
|
8ΩStereo Power
|
2X650W
|
|
4ΩStereo Power
|
2X1050W
|
|
2ΩStereo Power
|
2X1260W
|
|
8ΩBridged Mono Power
|
1940W
|
|
4ΩBridged Mono Power
|
2520W
|
|
IMD
(rated 8Ω60Hz-70KHz )%
|
0.05%
|
|
Input Impedance
(balanced/unbalanced)
|
20kΩ/10kΩ
|
|
Input Sensitivity
(rated power at 8Ω )
|
0.775V/1.0V/1.44V
|
|
Input Connectors
(ber channel)
|
XLR(1GND,2+,3-)
|
|
Output Connectors
(ber channel)
|
SPEAKON
|
|
Cooling
|
DC FANS
|
|
Face paneILED
lndicators
|
POWER,PROTECT,SINGAL,CLIP,BRIDGE
|
|
Class
|
AB
|
|
Protection
|
Temperatuer,DC,Sub/Ult ra-sonic,Short circuit,IGM,Output
|
|
Frequency Response
(+0/-0.3dB,1W/8Ω)
|
20Hz-20KHz
|
|
THD+N
(Rated Power,4Ω/KHz)%
|
<0.05%
|
|
Signal Noise Ration(dB)
|
100dB
|
|
Operating Voltage
|
~220-240V/50-60Hz
|
|
Dimennsions
(Height x Width x Depth)mm
|
88x485x445mm
|
|
Gross Weight(kg)
|
24.5kg
|
|
| |
|
|
|
