[ 特性 FEATURES ]

1、二音路全频设计

Two-way full-range design

2、梯形箱体设计

Trapezoidal cabinet design

3、倒相式低频辐射

Inverting low-frequency radiation

4、覆盖角度90° x 50°

Coverage angle of 90 ° x 50 °

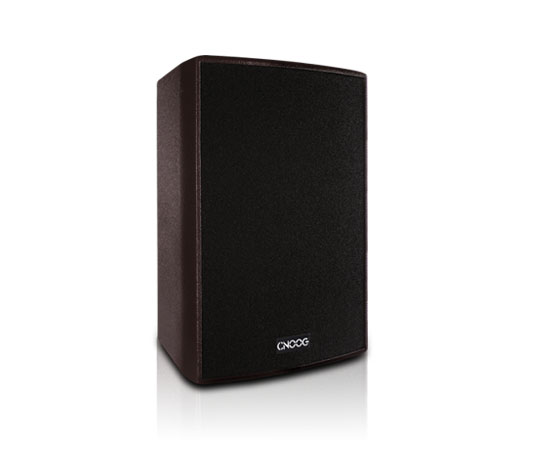

       M10是两分频低频反射结构全频扬声器，专门设计用于固定安装。 在标准情况下，CD 号角的位置在低频单元下面，这样可以减少来自墙面， 天花或其它附件音箱反射声对高频的干扰。当系统吊挂在舞台上时，这样的布置可以提高反馈前的余量。 扬声器被设计为允许在特定环境中将号角口旋转90°音箱使用了航海胶合板、抗撞漆， 音箱的前面板安装了金属防护栅（表面覆盖一层可更换的声学透声泡沫），在音箱的顶部、 侧面和底部都有M8缧丝孔，NL4 接口安装在凹口内。 音箱箱体有指定颜色和耐候型两种可供选择。

      M10 is a two-way bass reflex structure of full-range speakers, specifically designed for fixed installation. In the standard case, the location of the CD horn below the woofer, so you can reduce the sound reflections from walls, ceilings or other accessories speakers on the high-frequency interference. When the system is hanging on the stage, this arrangement can improve the margin before feedback. Speakers are designed to allow in a particular environment will be rotated 90 ° of the horn mouth speaker to use marine plywood, impact resistant paint finish, the front panel of speakers installed metal protective grid (covering the surface layer of a replaceable acoustically transparent foam), speakers the top side and bottom have a M8 threaded inserts, the NL4 interface installed in the notch. The speaker box specify the color and weathering two options.

MODEL

M10

特    性  FEATURES

箱体类型  Enclosure Geometry

梯形箱体设计   Trapezoidal cabinet design

辐射方式  Radiation mode

倒相式低频辐射 Inverting low-frequency radiation

高音单元  HF Components

B&C 1x1.4"

低音单元  LF Components

1x10"  65Core

高音保护  Protect Althorn

过流、过压、过保护 Over current, over voltage, over-protection

系统参数  SPECIFICATIONS

额定功率  Power Handling RMS

300W

节目功率  Power PROGRAM

600W

峰值功率  Power PEAK

1200W

灵 敏 度  Sensitivity

96dB

频率响应  Frequency Response

65Hz-18KHz

额定阻抗  Rated Impedance

8Ω

指 向 性  Directional H x V

90 ° x 50 °

连续声压  Calculated Output

113 / 119 dB SPL

最大声压  Maximum SPL

119 / 125 dB SPL

箱  体    PHYSICAL

材  料    Enclosure Material

18mm优质进口航海胶合板 18mm high-quality imports from marine plywood

表面漆    Finish

咖啡色环保耐磨水性漆 Brown environmental wear-resistant water-based paint

面  罩    Grille

金属防护铁网带声学防尘网 Metal protective iron net with acoustic dust network

吊挂点    Handing Position

12 x M8县吊，2 x NL4 凹口 12 x M8 County hanging, 2 x NL4 notch

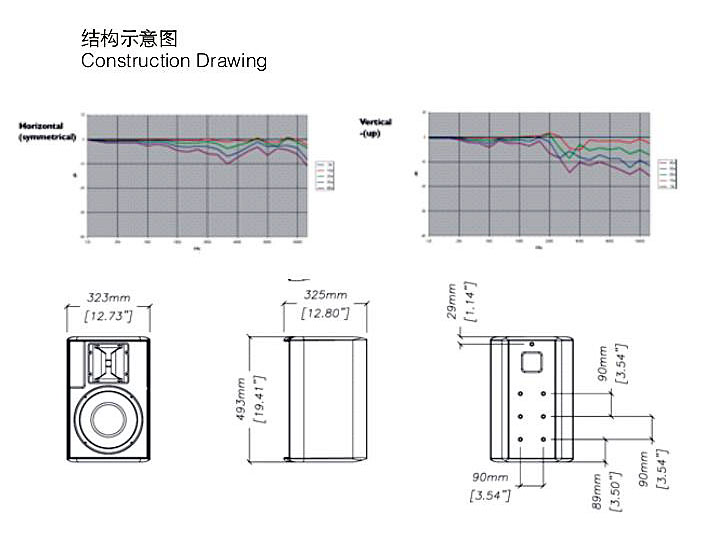

尺  寸    Dimensions W x D x H(mm)

493x323x325mm

重  量    (Weight)

17KG
