[ 特性 FEATURES ]

1、矩形箱体设计

A rectangular box body design

2、倒相式低频辐射

Inverted type low frequency radiation

3、提供强有力超低音输入

Provide powerful subwoofer input

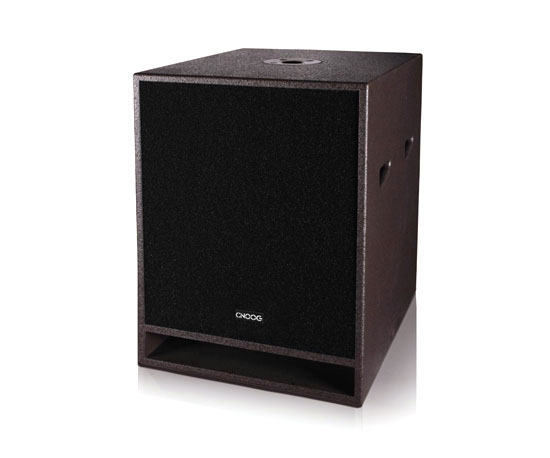

CTW 151 音箱是一款低音导射型的低频音箱，被特别设计成与专业全频音箱搭配使用，在保证大动态节目、紧促的全频域声音以及高效能的同时，获得良好的动态性能。它独特的大倒相孔使音箱可以在很小的功率压缩和呼吸效应的情况下产生很高的声压级。在现场音乐扩声中它可以与专业全频音箱配合使用组成强有力的系统，CTW 151音箱使用了航海胶合板、抗撞漆、钢制把手，在顶部备有M38 螺扣凸缘可以让扬声器支架嵌入安装。 音箱的前面板安装了金属防护栅（表面覆盖一层可更换的声学透声泡沫）。

CTW 151 speakers emitting low frequency sound of a bass guide was specifically designed with the professional full-range speakers with use, to ensure a large dynamic programs, pressed for full-range sound, and efficient at the same time, get a good dynamic performance. Its unique phase hole so that the speaker can produce very high sound pressure levels in the case of small power compression and respiratory effects. Live music sound reinforcement and professional full-range speaker used in conjunction to form a powerful system, the CTW 151 speakers to use marine plywood and has an impact resistant paint finish, steel handles are available in the top of the M38 threaded flange for speaker stands embedded installation. The front panel of speakers installed metal protective grid (covering the surface layer of a replaceable acoustically transparent foam).

MODEL

CTW151

特    性  FEATURES

箱体类型  Enclosure Geometry

矩形箱体设计    A rectangular box body design

辐射方式  Radiation mode

倒相式低频辐射 Inverting low-frequency radiation

低音单元  LF Components

1x15"

系统参数  SPECIFICATIONS

额定功率  Power Handling RMS

500W

峰值功率  Power PEAK

1200W

灵 敏 度  Sensitivity

101dB

频率响应  Frequency Response

40Hz-120KHz(±3dB)

额定阻抗  Rated Impedance

8Ω

最大声压  Maximum SPL

129.5 / 135.5 dB SPL

箱  体    PHYSICAL

材  料    Enclosure Material

18mm优质进口航海胶合板 18mm high-quality imports from marine plywood

表面漆    Finish

咖啡色环保耐磨水性漆 Brown environmental wear-resistant water-based paint

面  罩    Grille

金属防护铁网带声学防尘网 Metal protective iron net with acoustic dust network

尺  寸    Dimensions W x D x H(mm)

584x434x525mm

重  量    (Weight)

39KG
